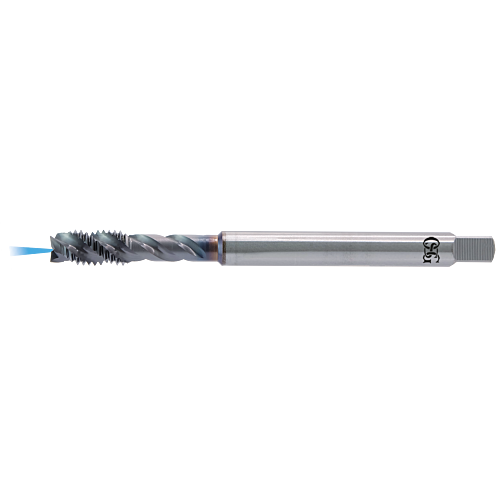

OSG M 14x2 V-EM-SFT
£0.00 Net price excl. VAT
0 in stock (UK Warehouse)
Other warehouses :
11 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 1001480640 | V-EM-SFT |
Key Features
- HSSE spiral-fluted cutting tap for blind holes
- Multilayer TiCN coating
- For die cast aluminium
- Centre through coolant, with end cut, for pre-formed cast holes
Specifications
THREAD TYPE
M
THREAD DIAMETER (TD)
14
THREAD PITCH/THREAD PER INCH (TP_TPI)
2.00
CONNECTION DIAMETER (DCON)
12.00
DRIVE SIZE (DRVS)
10.00
HOLE TYPE APPLICATION
Blind Hole
FUNCTIONAL LENGTH (LF)
120.00
USABLE LENGTH (LU)
48
FLUTE COUNT (NOF)
3.00
TAP TYPE
Cutting tap
THREAD CHAMFER LENGTH (THCHL)
2.5000
THREAD CHAMFER TYPE FORM (THCHT)
C
THREAD TOLERANCE
ISO2-6H
THREAD DIAMETER (TD_MM)
0.5512
THREAD DIAMETER (TD_MM)
14.00
THREAD PITCH (TP)
2.00
