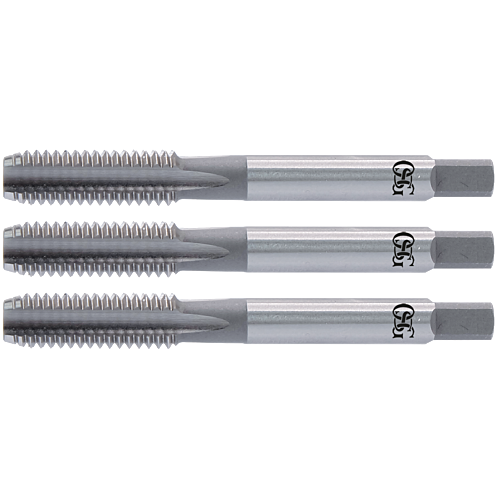

OSG M 8x1,25 RIF DIN 352
£0.00 Net price excl. VAT
1 in stock (UK Warehouse)
Ordered before 17:00 will be delivered the following day
Other warehouses :
3 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 10216166 | HT |
Specifications
THREAD TYPE
M
THREAD DIAMETER (TD)
8
THREAD PITCH/THREAD PER INCH (TP_TPI)
1.2500
CONNECTION DIAMETER (DCON)
6.00
DIN
352
DRIVE SIZE (DRVS)
4.9000
HOLE TYPE APPLICATION
Through and Blind Hole
FUNCTIONAL LENGTH (LF)
63.00
FLUTE COUNT (NOF)
4.00
PREMACHINED HOLE DIAMETER (PHD)
6.8
TAP TYPE
Cutting tap
THREAD LENGTH (THLGTH)
22.00
THREAD TOLERANCE
ISO2-6H
PHD_MAX
6.9120
PHD_MIN
6.6470
THREAD DIAMETER (TD_MM)
0.3150
THREAD DIAMETER (TD_MM)
8.00
THREAD PITCH (TP)
1.2500
Material
Steel
Cast iron
Aluminum alloys
