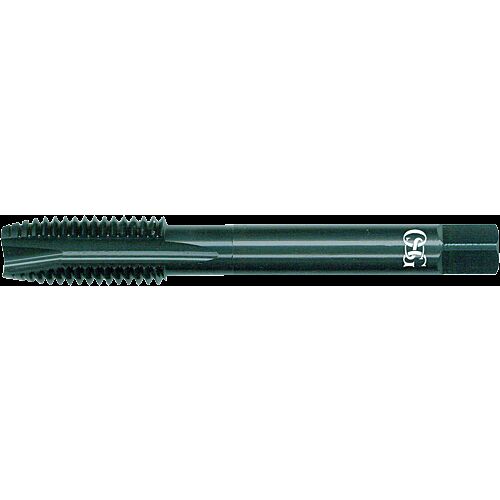

1/8X27 NPT 1066 POT
£0.00 Net price excl. VAT
1 in stock (UK Warehouse)
Ordered before 17:00 will be delivered the following day
Other warehouses :
0 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 22628764 | 1066-POT |
Key Features
Specifications
THREAD TYPE
NPT
THREAD DIAMETER (TD)
1/8
THREAD PITCH/THREAD PER INCH (TP_TPI)
27.00
CONNECTION DIAMETER (DCON)
0.3138
DRIVE SIZE (DRVS)
0.2380
HOLE TYPE APPLICATION
Through Hole
FUNCTIONAL LENGTH (LF)
54.00
PREMACHINED HOLE DIAMETER (PHD)
8,40
TAP TYPE
Cutting tap
THREAD CHAMFER LENGTH (THCHL)
4.00
THREAD CHAMFER TYPE FORM (THCHT)
FORM B
THREAD LENGTH (THLGTH)
19.00
THREAD DIAMETER (TD_MM)
0.4007
THREAD DIAMETER (TD_MM)
10.1770
THREAD PITCH (TP)
0.9407
THREAD PER INCH (TPI)
27.00
