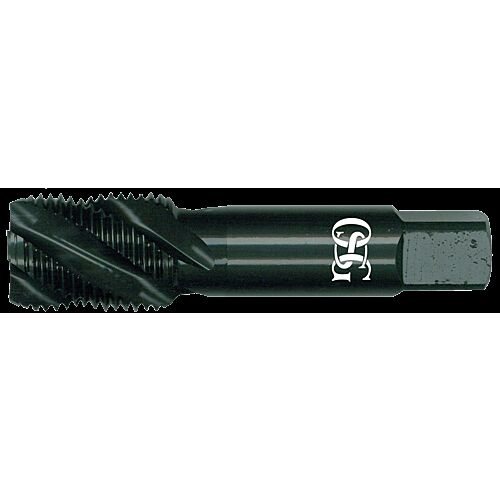

1/4X18 NPT 1066 SFT
£0.00 Net price excl. VAT
14 in stock (UK Warehouse)
Ordered before 17:00 will be delivered the following day
Other warehouses :
0 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 22638774 | 1066-SFT |
Key Features
Specifications
THREAD TYPE
NPT
THREAD DIAMETER (TD)
1/4
THREAD PITCH/THREAD PER INCH (TP_TPI)
18.00
CONNECTION DIAMETER (DCON)
0.4290
DRIVE SIZE (DRVS)
0.3220
HOLE TYPE APPLICATION
Blind Hole
FUNCTIONAL LENGTH (LF)
62.00
PREMACHINED HOLE DIAMETER (PHD)
11,10
TAP TYPE
Cutting tap
THREAD CHAMFER LENGTH (THCHL)
2.5000
THREAD CHAMFER TYPE FORM (THCHT)
FORM C
THREAD LENGTH (THLGTH)
27.00
THREAD DIAMETER (TD_MM)
0.5286
THREAD DIAMETER (TD_MM)
13.4260
THREAD PITCH (TP)
1.4111
THREAD PER INCH (TPI)
18.00
