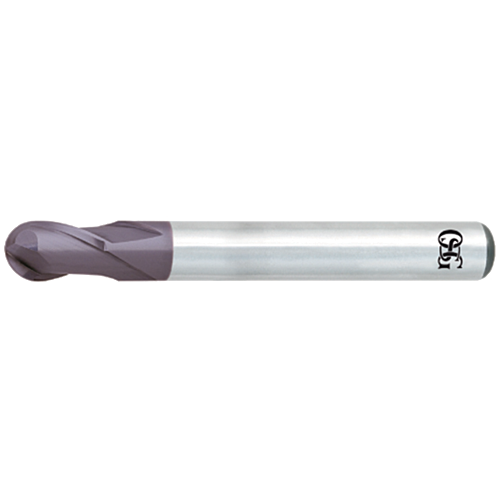

OSG R 2,5 WXS-HS-EBD
£0.00 Net price excl. VAT
1 in stock (UK Warehouse)
Ordered before 17:00 will be delivered the following day
Other warehouses :
104 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 3041750 | WXS-HS-EBD |
Specifications
DEPTH OF CUT MAXIMUM (APMX)
5.00
CUTTING DIAMETER (DC)
5.00
CONNECTION DIAMETER (DCON)
6.00
NECK DIAMETER (DN)
4.8500
FUNCTIONAL LENGTH (LF)
50.00
USABLE LENGTH (LU)
10
CORNER RADIUS (RE)
2.5000
PERIPHERAL EFFECTIVE CUTTING EDGE COUNT (ZEFP)
2.00
Material
Steel
Stainless steel
Cast iron
Titanium alloys
Hardened steel
Download format drawings
Cutting conditions
