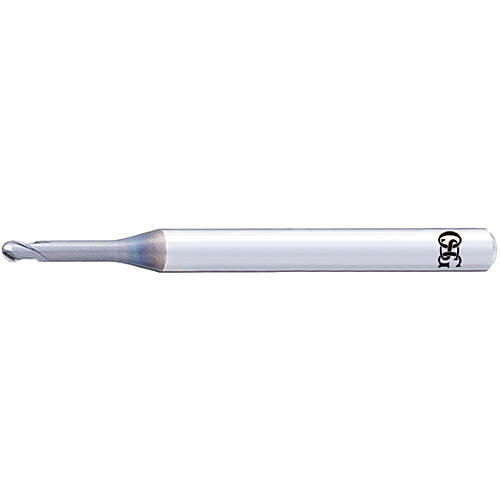

OSG R 0,25x2,5x4 AE-LNBD-H
£0.00 Net price excl. VAT
0 in stock (UK Warehouse)
Other warehouses :
71 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 3056150 | AE-LNBD-H |
Specifications
DEPTH OF CUT MAXIMUM (APMX)
0.4000
CUTTING DIAMETER (DC)
0.5000
CONNECTION DIAMETER (DCON)
4.00
NECK DIAMETER (DN)
0.4800
EFFECTIVE NECK LENGTH (Α) 0,5°
2.6100
EFFECTIVE NECK LENGTH (Α) 1º
2.6900
EFFECTIVE NECK LENGTH (Α) 1.5°
2.7800
EFFECTIVE NECK LENGTH (Α) 2º
2.8800
EFFECTIVE NECK LENGTH (Α) 3º
3.0900
FUNCTIONAL LENGTH (LF)
45.00
HEAD LENGTH (LH)
9.1000
USABLE LENGTH (LU)
2.5
TOOL PIECE ANGLE (ΘK)
11.2000
CORNER RADIUS (RE)
0.2500
TYPE
1
PERIPHERAL EFFECTIVE CUTTING EDGE COUNT (ZEFP)
2.00
Material
Steel
Stainless steel
Cast iron
Titanium alloys
Hardened steel
Download format drawings
Cutting conditions
