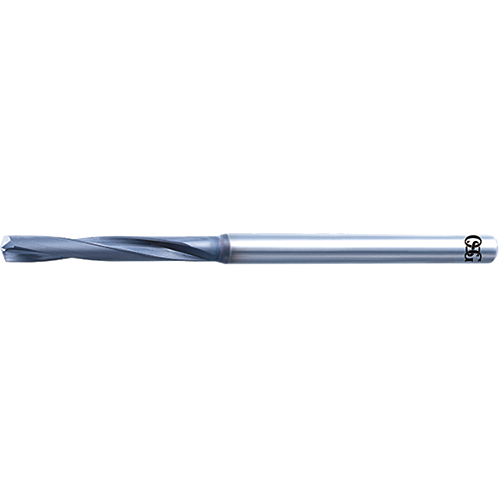

OSG D 8,5 WH55-5D
£0.00 Net price excl. VAT
4 in stock (Europe Warehouse)
Ordered before 17:00 will be delivered the following day
| EDP | Family |
|---|---|
| 3312850 | WH55-5D |
Specifications
CUTTING DIAMETER (DC)
8.5000
CONNECTION DIAMETER (DCON)
10.00
LENGTH CHIP FLUTE (LCF)
68.00
USABLE LENGTH (LU)
51
OVERALL LENGTH (OAL)
128.00
POINT LENGTH (PL)
1.5500
POINT ANGLE (SIG)
140.00
USABLE LENGTH DIAMETER RATIO (ULDR)
5.00
FLUTE TYPE
RSP20V12
FLUTE COUNT (NOF)
2.00
TOLERANCE CLASS CUTTING DIAMETER (TCDC)
h8
SHANK DIAMETER TOLERANCE (TCDMM)
H6
