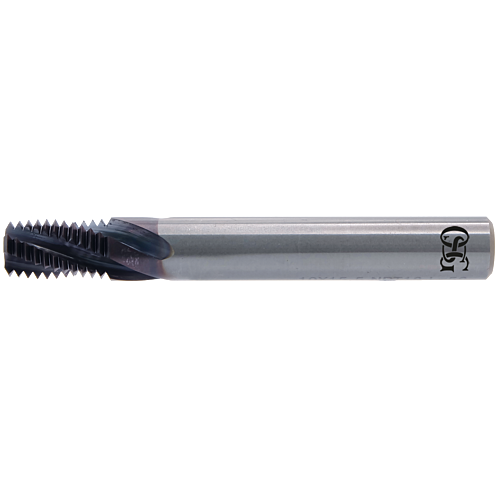

OSG D10 NPT18x10 WX-PNC
£0.00 Net price excl. VAT
1 in stock (UK Warehouse)
Ordered before 17:00 will be delivered the following day
Other warehouses :
3 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 3900261 | WX-PNC |
Specifications
THREAD TYPE
NPT
CUTTING DIAMETER (DC)
10.00
THREAD PITCH/THREAD PER INCH (TP_TPI)
18.00
DEPTH OF CUT MAXIMUM (APMX)
15.5000
CONNECTION DIAMETER (DCON)
10.00
HOLE TYPE APPLICATION
Through and Blind Hole
FUNCTIONAL LENGTH (LF)
75.00
MIN CUTTING BORE DIAMETER
1/4-3/8
FLUTE COUNT (NOF)
4.00
TAP TYPE
Thread milling cutter
RPRG
4.5590
THREAD PITCH (TP)
1.4111
THREAD PER INCH (TPI)
18.00
Material
Steel
Stainless steel
Cast iron
Aluminum alloys
Titanium alloys
Hardened steel
Download format drawings
Cutting conditions
