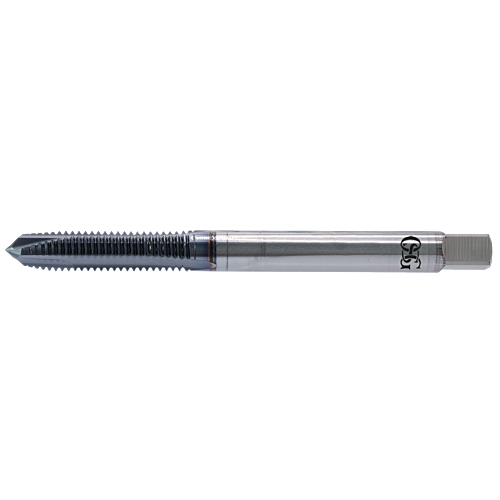

OSG UNJC 8x32 V-TI-POT DIN2182
£0.00 Net price excl. VAT
2 in stock (UK Warehouse)
Ordered before 17:00 will be delivered the following day
Other warehouses :
13 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 48014464 | V-TI-POT |
Specifications
THREAD TYPE
UNJC
THREAD DIAMETER (TD)
8
THREAD PITCH/THREAD PER INCH (TP_TPI)
32.00
CONNECTION DIAMETER (DCON)
4.5000
DIN
2184-1
DRIVE SIZE (DRVS)
3.4000
HOLE TYPE APPLICATION
Through Hole
FUNCTIONAL LENGTH (LF)
63.00
FLUTE COUNT (NOF)
3.00
PREMACHINED HOLE DIAMETER (PHD)
3.5
TAP TYPE
Cutting tap
THREAD CHAMFER LENGTH (THCHL)
5.00
THREAD CHAMFER TYPE FORM (THCHT)
B
THREAD LENGTH (THLGTH)
16.00
THREAD TOLERANCE
ANSI-3B
PHD_MAX
3.5980
PHD_MIN
3.3930
THREAD DIAMETER (TD_MM)
0.1640
THREAD DIAMETER (TD_MM)
4.1660
THREAD PITCH (TP)
0.7938
THREAD PER INCH (TPI)
32.00
