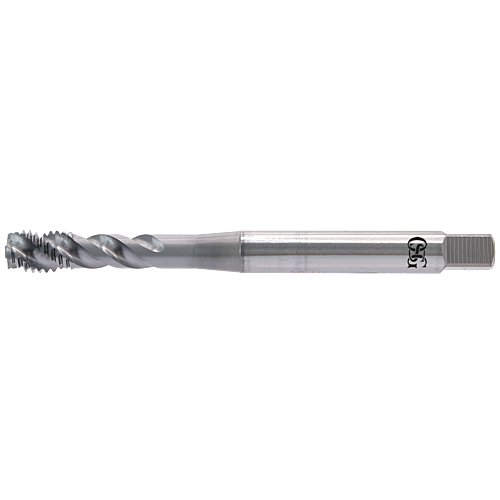

OSG UNJF 9/16x18 CC-SFT DIN2183
£0.00 Net price excl. VAT
1 in stock (UK Warehouse)
Ordered before 17:00 will be delivered the following day
Other warehouses :
101 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 48032496 | CC-SFT |
Specifications
THREAD TYPE
UNJF
THREAD DIAMETER (TD)
9/16
THREAD PITCH/THREAD PER INCH (TP_TPI)
18.00
CONNECTION DIAMETER (DCON)
11.00
DIN
2184-1
DRIVE SIZE (DRVS)
9.00
HOLE TYPE APPLICATION
Blind Hole
FUNCTIONAL LENGTH (LF)
100.00
FLUTE COUNT (NOF)
4.00
PREMACHINED HOLE DIAMETER (PHD)
13
TAP TYPE
Cutting tap
THREAD CHAMFER LENGTH (THCHL)
2.5000
THREAD CHAMFER TYPE FORM (THCHT)
C
THREAD LENGTH (THLGTH)
15.00
THREAD TOLERANCE
ANSI-3B
TYPE
2
PHD_MAX
13.1210
PHD_MIN
12.9130
THREAD DIAMETER (TD_MM)
0.5625
THREAD DIAMETER (TD_MM)
14.2870
THREAD PITCH (TP)
1.4111
THREAD PER INCH (TPI)
18.00
Material
Steel
Stainless steel
Aluminum alloys
Download format drawings
