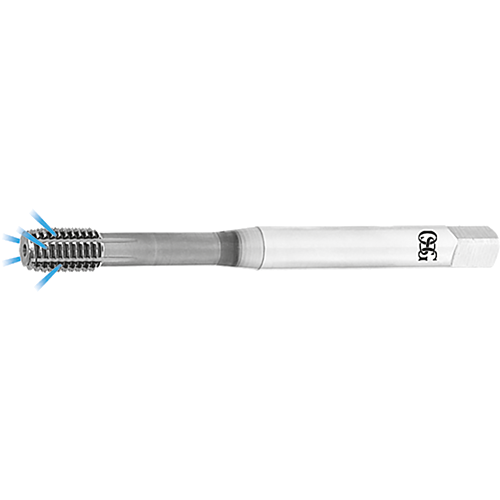

OSG UNF 5/16x24 S-OIL-XPF DIN2184-1
£0.00 Net price excl. VAT
0 in stock (UK Warehouse)
Other warehouses :
92 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 48042476 | S-OIL-XPF |
Specifications
THREAD TYPE
UNF
THREAD DIAMETER (TD)
5/16
THREAD PITCH/THREAD PER INCH (TP_TPI)
24.00
CONNECTION DIAMETER (DCON)
8.00
DIN
2184-1
DRIVE SIZE (DRVS)
6.2000
HOLE TYPE APPLICATION
Through and Blind Hole
FUNCTIONAL LENGTH (LF)
90.00
USABLE LENGTH (LU)
35
FLUTE COUNT (NOF)
5.00
PREMACHINED HOLE DIAMETER (PHD)
7,39 ~ 7,47
TAP TYPE
Forming tap
THREAD CHAMFER LENGTH (THCHL)
2.5000
THREAD CHAMFER TYPE FORM (THCHT)
C
THREAD LENGTH (THLGTH)
10.6000
THREAD TOLERANCE
ANSI-2BX
TYPE
1
PHD MIN
7.3900
PHD MAX
7.4700
PHD_MAX
7.4700
PHD_MIN
7.3900
THREAD DIAMETER (TD_MM)
0.3125
THREAD DIAMETER (TD_MM)
7.9375
THREAD PITCH (TP)
1.0583
THREAD PER INCH (TPI)
24.00
Material
Steel
Stainless steel
Aluminum alloys
Hardened steel
