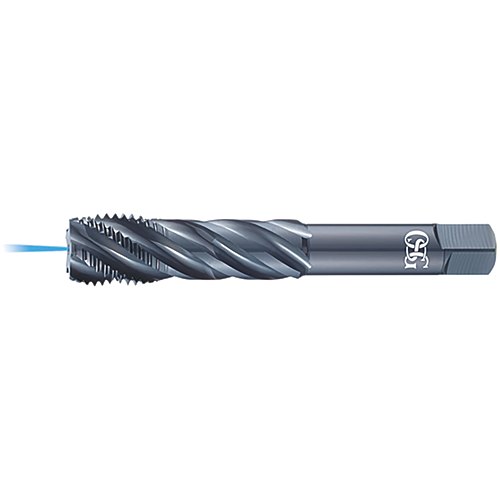

OSG M 24X3 OIL-VXL-SFT 6H OAL160
£0.00 Net price excl. VAT
0 in stock (UK Warehouse)
Other warehouses :
17 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 48049247 | OIL-VXL-SFT |
Specifications
THREAD TYPE
M
THREAD DIAMETER (TD)
24
THREAD PITCH/THREAD PER INCH (TP_TPI)
3.00
CONNECTION DIAMETER (DCON)
18.00
DRIVE SIZE (DRVS)
14.5000
HOLE TYPE APPLICATION
Blind Hole
FUNCTIONAL LENGTH (LF)
160.00
USABLE LENGTH (LU)
81
FLUTE COUNT (NOF)
4.00
PREMACHINED HOLE DIAMETER (PHD)
21
TAP TYPE
Cutting tap
THREAD CHAMFER LENGTH (THCHL)
2.5000
THREAD CHAMFER TYPE FORM (THCHT)
C
THREAD LENGTH (THLGTH)
24.00
THREAD TOLERANCE
ISO2-6HX
PHD_MAX
21.2520
PHD_MIN
20.7520
THREAD DIAMETER (TD_MM)
0.9449
THREAD DIAMETER (TD_MM)
24.00
THREAD PITCH (TP)
3.00
Material
Steel
Stainless steel
Cast iron
Hardened steel
Download format drawings
