OSG G1/2x14 VX-OT-SPT DIN5156

Add to Wish List
Be the first to review this product
£0.00 Net price excl. VAT
Sign In / Register

This product is available in the warehouse of our European headquarters. The delivery time is approx. 2 working days.

0 in stock (UK Warehouse)
Other warehouses :
10 in stock (Europe Warehouse)
EDP Family
48080841 VX-OT

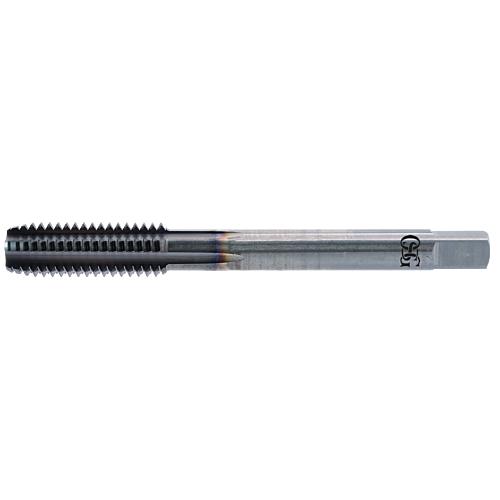

main product photo
Specifications
THREAD TYPE
G
THREAD DIAMETER (TD)
1/2
THREAD PITCH/THREAD PER INCH (TP_TPI)
14.00
CONNECTION DIAMETER (DCON)
16.00
DIN
5156
DRIVE SIZE (DRVS)
12.00
HOLE TYPE APPLICATION
Through and Blind Hole
FUNCTIONAL LENGTH (LF)
125.00
FLUTE COUNT (NOF)
6.00
PREMACHINED HOLE DIAMETER (PHD)
19
TAP TYPE
Cutting tap
THREAD CHAMFER LENGTH (THCHL)
3.00
THREAD CHAMFER TYPE FORM (THCHT)
C
THREAD LENGTH (THLGTH)
22.00
PHD_MAX
19.1720
PHD_MIN
18.6310
THREAD DIAMETER (TD_MM)
0.8250
THREAD DIAMETER (TD_MM)
20.9550
THREAD PITCH (TP)
1.8143
THREAD PER INCH (TPI)
14.00
Material
H
Hardened steel
Download format drawings
