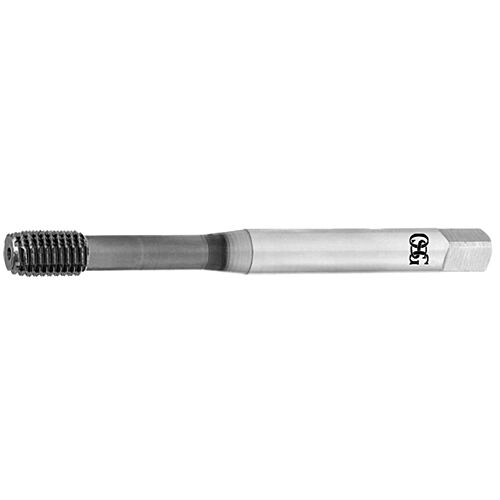

OSG M 2,5 x0,45 S-XPF 6GX DIN 2174
£0.00 Net price excl. VAT
0 in stock (UK Warehouse)
Other warehouses :
41 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 48086133 | S-XPF 6GX |
Specifications
THREAD TYPE
M
THREAD DIAMETER (TD)
2,5
THREAD PITCH/THREAD PER INCH (TP_TPI)
0.4500
CONNECTION DIAMETER (DCON)
2.8000
DIN
2174
DRIVE SIZE (DRVS)
2.1000
HOLE TYPE APPLICATION
Through and Blind Hole
FUNCTIONAL LENGTH (LF)
50.00
USABLE LENGTH (LU)
9
FLUTE COUNT (NOF)
4.00
OVERSIZE
0.0200
PREMACHINED HOLE DIAMETER (PHD)
2,32 ~ 2,35
TAP TYPE
Forming tap
THREAD CHAMFER LENGTH (THCHL)
2.5000
THREAD CHAMFER TYPE FORM (THCHT)
C
THREAD LENGTH (THLGTH)
9.00
THREAD TOLERANCE
ISO3-6GX
TYPE
1
PHD MIN
2.3200
PHD MAX
2.3500
PHD_MAX
2.3500
PHD_MIN
2.3200
THREAD DIAMETER (TD_MM)
0.0984
THREAD DIAMETER (TD_MM)
2.5000
THREAD PITCH (TP)
0.4500
Material
Steel
Stainless steel
Aluminum alloys
Hardened steel
Download format drawings
