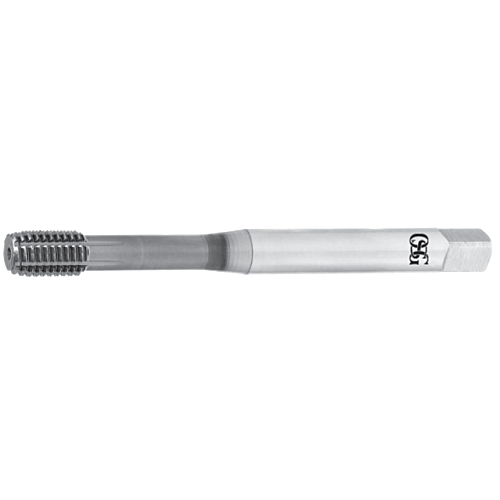

OSG UNC 5/16x18 S-XPF DIN 2184-1
£0.00 Net price excl. VAT
0 in stock (UK Warehouse)
Other warehouses :
10 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 48091474 | S-XPF |
Specifications
THREAD TYPE
UNC
THREAD DIAMETER (TD)
5/16
THREAD PITCH/THREAD PER INCH (TP_TPI)
18.00
CONNECTION DIAMETER (DCON)
8.00
DIN
2184-1
DRIVE SIZE (DRVS)
6.2000
HOLE TYPE APPLICATION
Through and Blind Hole
FUNCTIONAL LENGTH (LF)
90.00
USABLE LENGTH (LU)
35
FLUTE COUNT (NOF)
5.00
PREMACHINED HOLE DIAMETER (PHD)
7,18 ~ 7,29
TAP TYPE
Forming tap
THREAD CHAMFER LENGTH (THCHL)
2.5000
THREAD CHAMFER TYPE FORM (THCHT)
C
THREAD LENGTH (THLGTH)
14.00
THREAD TOLERANCE
ANSI-2BX
TYPE
1
PHD MIN
7.1800
PHD MAX
7.2900
PHD_MAX
7.2900
PHD_MIN
7.1800
THREAD DIAMETER (TD_MM)
0.3125
THREAD DIAMETER (TD_MM)
7.9375
THREAD PITCH (TP)
1.4111
THREAD PER INCH (TPI)
18.00
Material
Steel
Stainless steel
Aluminum alloys
Hardened steel
Download format drawings
