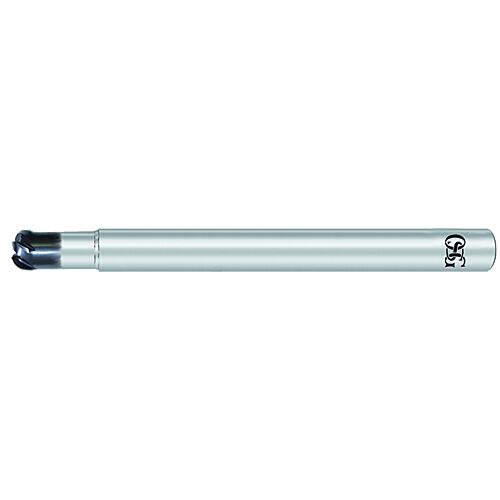

OSG D 12xR3 WXS-CRE
£0.00 Net price excl. VAT
0 in stock (UK Warehouse)
Other warehouses :
27 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 48106533 | WXS-CRE |
Key Features
- Carbide end mill with WXS coating
- For hardened steels up to 65 HRC and stainless steels
- Multi flute with super radius
Specifications
DEPTH OF CUT MAXIMUM (APMX)
4.8000
CUTTING DIAMETER (DC)
12.00
CONNECTION DIAMETER (DCON)
12.00
NECK DIAMETER (DN)
11.00
FUNCTIONAL LENGTH (LF)
110.00
USABLE LENGTH (LU)
24
CORNER RADIUS (RE)
3.00
TYPE
2
PERIPHERAL EFFECTIVE CUTTING EDGE COUNT (ZEFP)
5.00
Material
Steel
Cast iron
Hardened steel
Download format drawings
Cutting conditions
