OSG D10 DIA-HBC
£0.00 Net price excl. VAT
2 in stock (UK Warehouse)
Ordered before 17:00 will be delivered the following day
Other warehouses :
179 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 48109003 | DIA-HBC |
Key Features

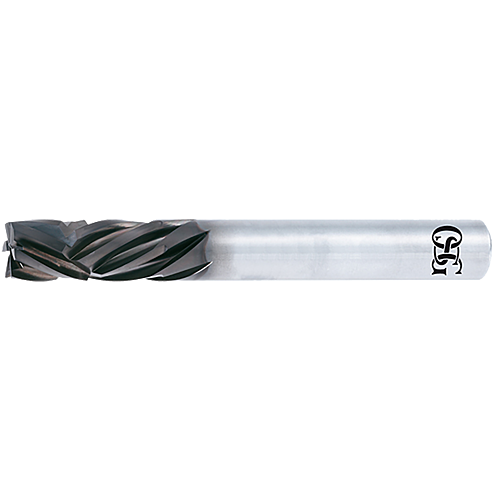

- Carbide end mill with diamond coating
- For CFRP milling
- 4 flutes, left-hand / right-hand flute to suppress delamination
Specifications
DEPTH OF CUT MAXIMUM (APMX)
12.5000
CUTTING DIAMETER (DC)
10.00
CONNECTION DIAMETER (DCON)
10.00
FUNCTIONAL LENGTH (LF)
75.00
USABLE LENGTH (LU)
25
PERIPHERAL EFFECTIVE CUTTING EDGE COUNT (ZEFP)
4.00
Download format drawings
Cutting conditions
