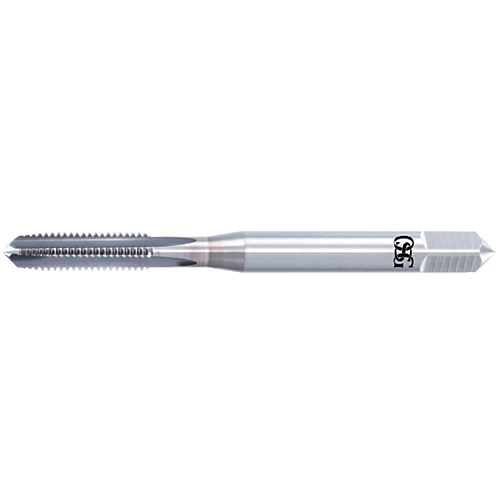

OSG M5x0,8 WH55-OT 5P DIN
£0.00 Net price excl. VAT
0 in stock (UK Warehouse)
Other warehouses :
15 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 48111149 | WH55-OT |
Specifications
THREAD TYPE
M
THREAD DIAMETER (TD)
5
THREAD PITCH/THREAD PER INCH (TP_TPI)
0.8000
CONNECTION DIAMETER (DCON)
6.00
DRIVE SIZE (DRVS)
4.9000
HOLE TYPE APPLICATION
Through Hole
FUNCTIONAL LENGTH (LF)
60.00
USABLE LENGTH (LU)
24
FLUTE COUNT (NOF)
4.00
PREMACHINED HOLE DIAMETER (PHD)
4.2
TAP TYPE
Cutting tap
THREAD CHAMFER LENGTH (THCHL)
5.00
THREAD CHAMFER TYPE FORM (THCHT)
D
THREAD LENGTH (THLGTH)
16.00
THREAD TOLERANCE
ISO2-6HX
PHD_MAX
4.3340
PHD_MIN
4.1340
THREAD DIAMETER (TD_MM)
0.1969
THREAD DIAMETER (TD_MM)
5.00
THREAD PITCH (TP)
0.8000
