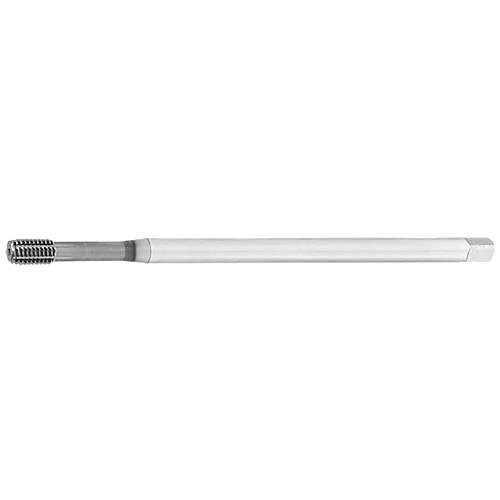

OSG M2,5x0,45 S-LT-XPF 6HX DIN371 L100
£0.00 Net price excl. VAT
3 in stock (UK Warehouse)
Ordered before 17:00 will be delivered the following day
Other warehouses :
45 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 48115133 | S-LT-XPF |
Specifications
THREAD TYPE
M
THREAD DIAMETER (TD)
2,5
THREAD PITCH/THREAD PER INCH (TP_TPI)
0.4500
CONNECTION DIAMETER (DCON)
2.8000
DRIVE SIZE (DRVS)
2.1000
HOLE TYPE APPLICATION
Through and Blind Hole
FUNCTIONAL LENGTH (LF)
100.00
USABLE LENGTH (LU)
9
FLUTE COUNT (NOF)
0.00
PREMACHINED HOLE DIAMETER (PHD)
2,30 ~ 2,34
TAP TYPE
Forming tap
THREAD CHAMFER LENGTH (THCHL)
2.5000
THREAD CHAMFER TYPE FORM (THCHT)
C
THREAD LENGTH (THLGTH)
9.00
THREAD TOLERANCE
ISO2-6HX
TYPE
1
PHD MIN
2.3000
PHD MAX
2.3400
PHD_MAX
2.3400
PHD_MIN
2.3000
THREAD DIAMETER (TD_MM)
0.0984
THREAD DIAMETER (TD_MM)
2.5000
THREAD PITCH (TP)
0.4500
Material
Steel
Stainless steel
Aluminum alloys
Hardened steel
