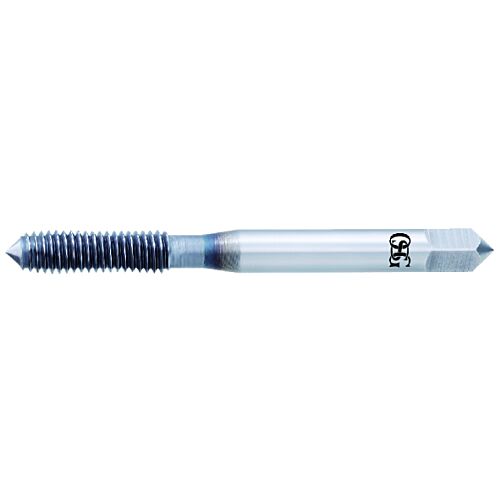

OSG M 6x1 R-XPF 6GX DIN371
£0.00 Net price excl. VAT
0 in stock (UK Warehouse)
Other warehouses :
2 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 48118155 | R-XPF 6GX |
Key Features
- HSS forming tap for through and blind holes
- Multilayer TiCN coating
- For general steels, stainless steels, aluminium
- For 6G internal thread tolerance
Specifications
THREAD TYPE
M
THREAD DIAMETER (TD)
6
THREAD PITCH/THREAD PER INCH (TP_TPI)
1.00
CONNECTION DIAMETER (DCON)
6.00
DIN
2174
DRIVE SIZE (DRVS)
4.9000
HOLE TYPE APPLICATION
Through and Blind Hole
FUNCTIONAL LENGTH (LF)
80.00
USABLE LENGTH (LU)
30
FLUTE COUNT (NOF)
0.00
OVERSIZE
0.0260
PREMACHINED HOLE DIAMETER (PHD)
5,55 ~ 5,63
TAP TYPE
Forming tap
THREAD CHAMFER LENGTH (THCHL)
2.5000
THREAD CHAMFER TYPE FORM (THCHT)
C
THREAD LENGTH (THLGTH)
19.00
THREAD TOLERANCE
ISO3-6GX
PHD_MAX
5.6300
PHD_MIN
5.5500
THREAD DIAMETER (TD_MM)
0.2362
THREAD DIAMETER (TD_MM)
6.00
THREAD PITCH (TP)
1.00
Material
Steel
Stainless steel
Aluminum alloys
Download format drawings
