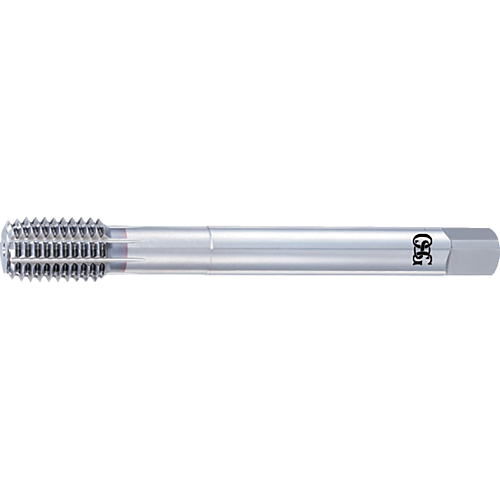

OSG M1,1X0,25 A-XPF DIN2174
£0.00 Net price excl. VAT
2 in stock (UK Warehouse)
Ordered before 17:00 will be delivered the following day
Other warehouses :
33 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 48133112 | A-XPF |
Specifications
THREAD TYPE
M
THREAD DIAMETER (TD)
1,1
THREAD PITCH/THREAD PER INCH (TP_TPI)
0.2500
CONNECTION DIAMETER (DCON)
2.5000
DIN
2174
DRIVE SIZE (DRVS)
2.1000
HOLE TYPE APPLICATION
Through and Blind Hole
FUNCTIONAL LENGTH (LF)
40.00
USABLE LENGTH (LU)
5.5
FLUTE COUNT (NOF)
4.00
PREMACHINED HOLE DIAMETER (PHD)
0,99 ~ 1,00
TAP TYPE
Forming tap
THREAD CHAMFER LENGTH (THCHL)
2.5000
THREAD CHAMFER TYPE FORM (THCHT)
C
THREAD LENGTH (THLGTH)
5.5000
THREAD TOLERANCE
ISO2-6HX
TYPE
1
PHD MIN
0.9900
PHD MAX
1.00
PHD_MAX
1.00
PHD_MIN
0.9900
THREAD DIAMETER (TD_MM)
0.0433
THREAD DIAMETER (TD_MM)
1.1000
THREAD PITCH (TP)
0.2500
Material
Steel
Stainless steel
Aluminum alloys
Hardened steel
