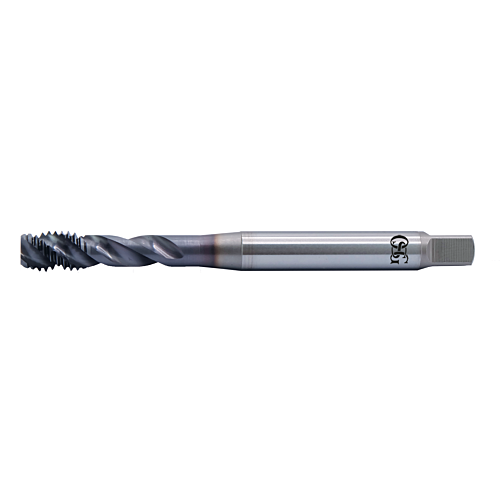

OSG M 1,7 x0,35 A-SFT DIN 371
£0.00 Net price excl. VAT
2 in stock (UK Warehouse)
Ordered before 17:00 will be delivered the following day
Other warehouses :
77 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 48139119 | A-SFT |
Specifications
THREAD TYPE
M
THREAD DIAMETER (TD)
1.7
THREAD PITCH/THREAD PER INCH (TP_TPI)
0.3500
CONNECTION DIAMETER (DCON)
2.5000
DIN
371
DRIVE SIZE (DRVS)
2.1000
HOLE TYPE APPLICATION
Blind Hole
FUNCTIONAL LENGTH (LF)
40.00
USABLE LENGTH (LU)
8
FLUTE COUNT (NOF)
2.00
PREMACHINED HOLE DIAMETER (PHD)
1.3
TAP TYPE
Cutting tap
THREAD CHAMFER LENGTH (THCHL)
2.5000
THREAD CHAMFER TYPE FORM (THCHT)
C
THREAD TOLERANCE
ISO2-6HX
TYPE
1
PHD_MAX
1.4210
PHD_MIN
1.3210
THREAD DIAMETER (TD_MM)
0.0669
THREAD DIAMETER (TD_MM)
1.7000
THREAD PITCH (TP)
0.3500
Material
Steel
Stainless steel
Aluminum alloys
Titanium alloys
Hardened steel
Download format drawings
