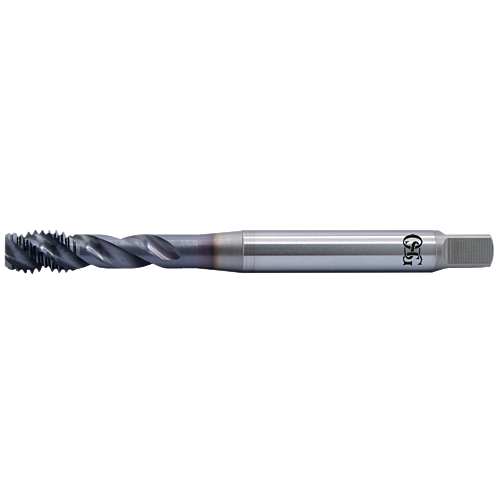

OSG M 6x1 A-SFT DIN 371
£0.00 Net price excl. VAT
216 in stock (UK Warehouse)
Ordered before 17:00 will be delivered the following day
Other warehouses :
13361 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 48139155 | A-SFT |
Specifications
THREAD TYPE
M
THREAD DIAMETER (TD)
6
THREAD PITCH/THREAD PER INCH (TP_TPI)
1.00
CONNECTION DIAMETER (DCON)
6.00
DIN
371
DRIVE SIZE (DRVS)
4.9000
HOLE TYPE APPLICATION
Blind Hole
FUNCTIONAL LENGTH (LF)
80.00
USABLE LENGTH (LU)
30
FLUTE COUNT (NOF)
3.00
PREMACHINED HOLE DIAMETER (PHD)
5
TAP TYPE
Cutting tap
THREAD CHAMFER LENGTH (THCHL)
2.5000
THREAD CHAMFER TYPE FORM (THCHT)
C
THREAD LENGTH (THLGTH)
8.00
THREAD TOLERANCE
ISO2-6HX
TYPE
2
PHD_MAX
5.1530
PHD_MIN
4.9170
THREAD DIAMETER (TD_MM)
0.2362
THREAD DIAMETER (TD_MM)
6.00
THREAD PITCH (TP)
1.00
Material
Steel
Stainless steel
Aluminum alloys
Titanium alloys
Hardened steel
Download format drawings
