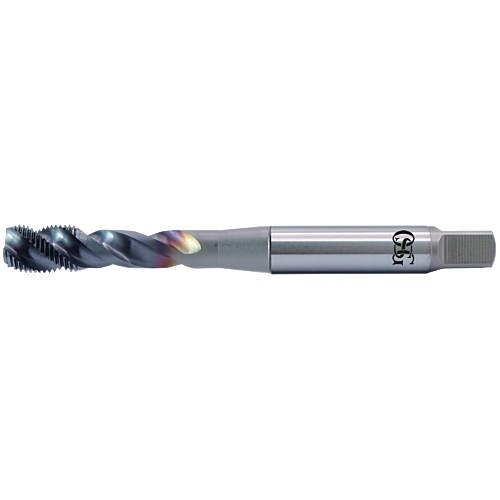

OSG MF 7 x0,75 A-SFT DIN 371
£0.00 Net price excl. VAT
1 in stock (UK Warehouse)
Ordered before 17:00 will be delivered the following day
Other warehouses :
154 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 48139160 | A-SFT |
Specifications
THREAD TYPE
MF
THREAD DIAMETER (TD)
7
THREAD PITCH/THREAD PER INCH (TP_TPI)
0.7500
CONNECTION DIAMETER (DCON)
7.00
DIN
371
DRIVE SIZE (DRVS)
5.5000
HOLE TYPE APPLICATION
Blind Hole
FUNCTIONAL LENGTH (LF)
80.00
USABLE LENGTH (LU)
30
FLUTE COUNT (NOF)
3.00
PREMACHINED HOLE DIAMETER (PHD)
6.3
TAP TYPE
Cutting tap
THREAD CHAMFER LENGTH (THCHL)
2.5000
THREAD CHAMFER TYPE FORM (THCHT)
C
THREAD LENGTH (THLGTH)
8.00
THREAD TOLERANCE
ISO2-6HX
TYPE
1
PHD_MAX
6.3780
PHD_MIN
6.1880
THREAD DIAMETER (TD_MM)
0.2756
THREAD DIAMETER (TD_MM)
7.00
THREAD PITCH (TP)
0.7500
Material
Steel
Stainless steel
Aluminum alloys
Titanium alloys
Hardened steel
Download format drawings
