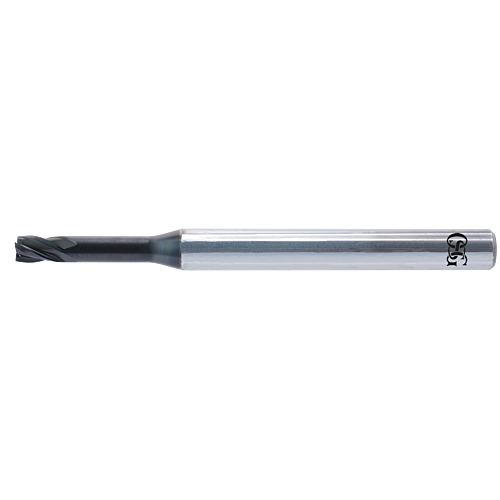

OSG D 4 WXL-LN-EMS-6
£0.00 Net price excl. VAT
1 in stock (UK Warehouse)
Ordered before 17:00 will be delivered the following day
Other warehouses :
52 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 48142040 | WXL-LN-EMS-6 |
Key Features
- Carbide end mill with WXL coating
- For hardened steels up to 52 HRC
- 4 flutes, long neck
- Shank diameter 6
Specifications
DEPTH OF CUT MAXIMUM (APMX)
6.00
CUTTING DIAMETER (DC)
4.00
CONNECTION DIAMETER (DCON)
6.00
NECK DIAMETER (DN)
3.8500
EFFECTIVE NECK LENGTH (Α) 0,5°
20.6700
EFFECTIVE NECK LENGTH (Α) 1º
21.3900
EFFECTIVE NECK LENGTH (Α) 1.5°
22.1700
EFFECTIVE NECK LENGTH (Α) 2º
23.00
FUNCTIONAL LENGTH (LF)
70.00
USABLE LENGTH (LU)
20
PERIPHERAL EFFECTIVE CUTTING EDGE COUNT (ZEFP)
4.00
Material
Steel
Stainless steel
Cast iron
Aluminum alloys
Titanium alloys
Hardened steel
Download format drawings
Cutting conditions
