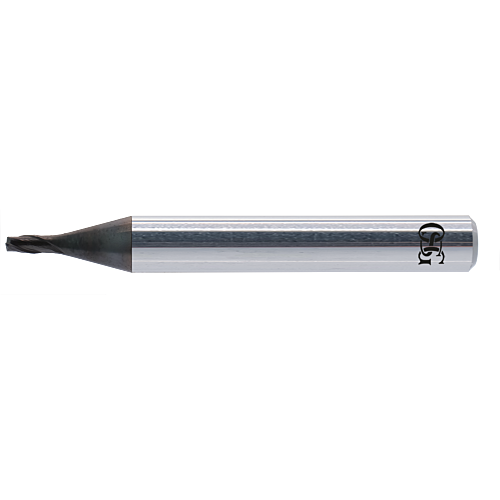

OSG D 0,8xR0,1 WXL-CR-EDS-6
£0.00 Net price excl. VAT
0 in stock (UK Warehouse)
Other warehouses :
0 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 48144080 | WXL-CR-EDS-6 |
Key Features
- Carbide end mill with WXL coating
- For general applications
- 2 flutes, corner radius
- Shank diameter 6
Specifications
DEPTH OF CUT MAXIMUM (APMX)
1.2000
CUTTING DIAMETER (DC)
0.8000
CONNECTION DIAMETER (DCON)
6.00
NECK DIAMETER (DN)
0.7500
EFFECTIVE NECK LENGTH (Α) 0,5°
2.4800
EFFECTIVE NECK LENGTH (Α) 1º
2.5600
EFFECTIVE NECK LENGTH (Α) 1.5°
2.6600
EFFECTIVE NECK LENGTH (Α) 2º
2.7600
EFFECTIVE NECK LENGTH (Α) 2.5°
2.8600
EFFECTIVE NECK LENGTH (Α) 3º
2.9800
FUNCTIONAL LENGTH (LF)
50.00
USABLE LENGTH (LU)
2.4
CORNER RADIUS (RE)
0.1000
PERIPHERAL EFFECTIVE CUTTING EDGE COUNT (ZEFP)
2.00
Material
Steel
Stainless steel
Cast iron
Aluminum alloys
Titanium alloys
Hardened steel
Download format drawings
Cutting conditions
