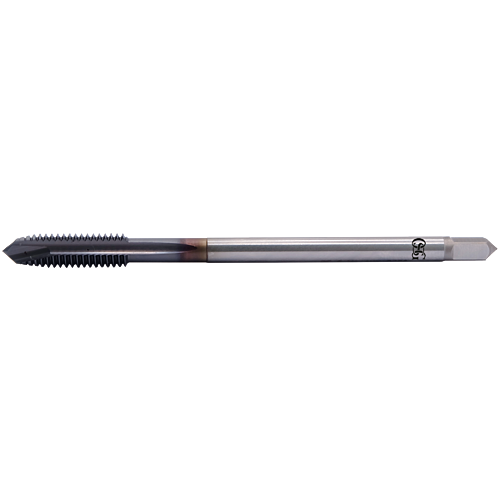

OSG UNC 1x8 A-POT DIN2184-1
£0.00 Net price excl. VAT
4 in stock (UK Warehouse)
Ordered before 17:00 will be delivered the following day
Other warehouses :
56 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 48145538 | A-POT |
Specifications
THREAD TYPE
UNC
THREAD DIAMETER (TD)
1
THREAD PITCH/THREAD PER INCH (TP_TPI)
8.00
CONNECTION DIAMETER (DCON)
18.00
DIN
2184-1
DRIVE SIZE (DRVS)
14.5000
HOLE TYPE APPLICATION
Through Hole
FUNCTIONAL LENGTH (LF)
160.00
FLUTE COUNT (NOF)
3.00
PREMACHINED HOLE DIAMETER (PHD)
22.3
TAP TYPE
Cutting tap
THREAD CHAMFER LENGTH (THCHL)
4.00
THREAD CHAMFER TYPE FORM (THCHT)
B
THREAD LENGTH (THLGTH)
38.00
THREAD TOLERANCE
ANSI-2BX
TYPE
2
PHD_MAX
22.6060
PHD_MIN
21.9710
THREAD DIAMETER (TD_MM)
1.00
THREAD DIAMETER (TD_MM)
25.4000
THREAD PITCH (TP)
3.1750
THREAD PER INCH (TPI)
8.00
Material
Steel
Stainless steel
Aluminum alloys
Titanium alloys
Hardened steel
