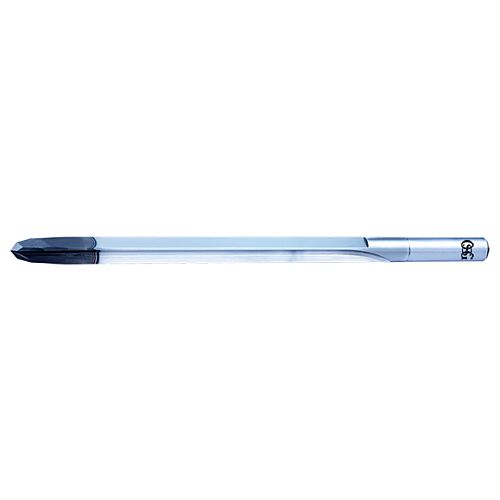

OSG D8 D-STAD
£0.00 Net price excl. VAT
6 in stock (UK Warehouse)
Ordered before 17:00 will be delivered the following day
Other warehouses :
10 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 48154003 | D-STAD |
Specifications
CUTTING DIAMETER (DC)
8.00
CONNECTION DIAMETER (DCON)
8.00
LENGTH CHIP FLUTE (LCF)
50.00
USABLE LENGTH (LU)
34
OVERALL LENGTH (OAL)
100.00
POINT LENGTH (PL)
2.3100
POINT ANGLE (SIG)
120.00
USABLE LENGTH DIAMETER RATIO (ULDR)
3.00
FLUTE COUNT (NOF)
2.00
TOLERANCE CLASS CUTTING DIAMETER (TCDC)
0 ~-0,02
SHANK DIAMETER TOLERANCE (TCDMM)
H6
Cutting conditions
