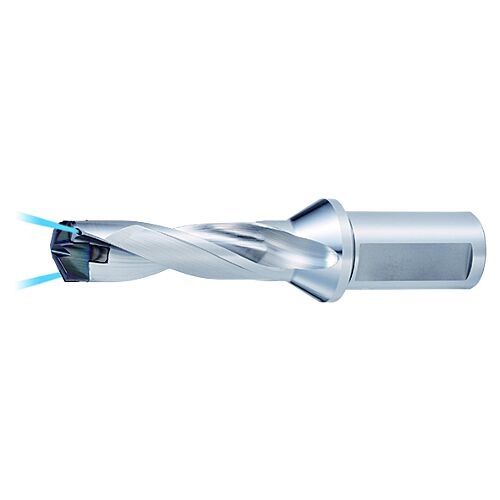

OSG PXDZ180-3D-138.5-25 + Driver
£0.00 Net price excl. VAT
0 in stock (UK Warehouse)
Other warehouses :
13 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 48173006 | PXDZ |
Key Features
- Exchangeable head drill with internal coolant
- Up to 3xD
- 3 different solid carbide head types based on work material
- 13 sizes
- Including driver
Specifications
APPLICABLE INSERTS TYPE
PXDH1800 PXDH1890
CUTTING DIAMETER (DC)
17.5000
CUTTING DIAMETER MINIMUM (DCN)
18.00
CONNECTION DIAMETER (DCON)
25.00
CONTACT SURFACE DIAMETER MACHINE SIDE (DCSFMS)
32.00
CUTTING DIAMETER MAXIMUM (DCX)
18.9900
DESIGNATION
PXDZ1803D138,525
LENGTH CHIP FLUTE (LCF)
81.4000
PROTRUDING LENGTH (LPR)
87.9000
SHANK LENGTH (LS)
56.00
USABLE LENGTH (LU)
55.5
SEAT SIZE
PXDH1800 PXDH1890
Material
Steel
Cast iron
Aluminum alloys
Download format drawings
Cutting conditions
