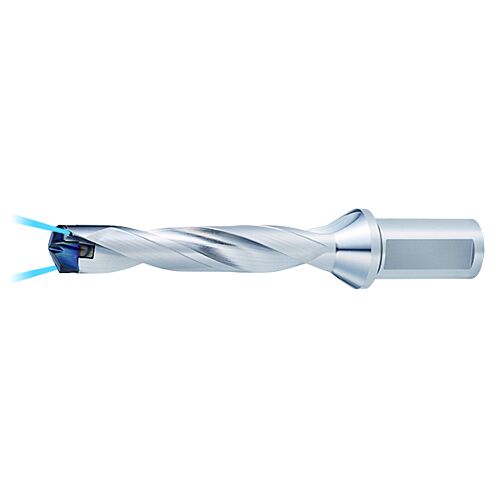

OSG PXDZ170-5D-162.5-20 + Driver
£0.00 Net price excl. VAT
0 in stock (UK Warehouse)
Other warehouses :
12 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 48173018 | PXDZ |
Key Features
- Exchangeable head drill with internal coolant
- Up to 5xD
- 3 different solid carbide head types based on work material
- 13 sizes
- Including driver
Specifications
APPLICABLE INSERTS TYPE
PXDH1700 PXDH1790
CUTTING DIAMETER (DC)
16.5000
CUTTING DIAMETER MINIMUM (DCN)
17.00
CONNECTION DIAMETER (DCON)
20.00
CONTACT SURFACE DIAMETER MACHINE SIDE (DCSFMS)
25.00
CUTTING DIAMETER MAXIMUM (DCX)
17.9900
DESIGNATION
PXDZ1705D162,520
LENGTH CHIP FLUTE (LCF)
110.8000
PROTRUDING LENGTH (LPR)
117.3000
SHANK LENGTH (LS)
50.00
USABLE LENGTH (LU)
87.5
SEAT SIZE
PXDH1700 PXDH1790
Material
Steel
Cast iron
Aluminum alloys
Download format drawings
Cutting conditions
