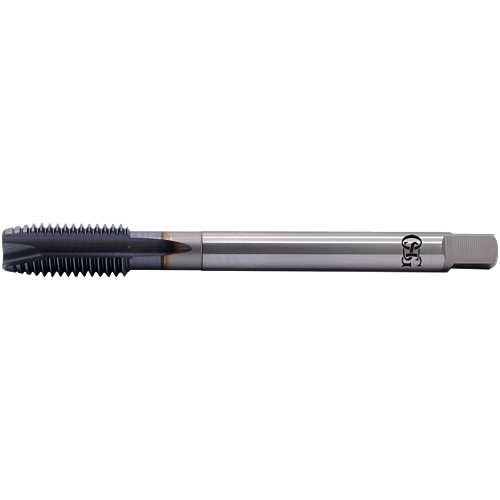

OSG MF 10 x1 A-POT 6GX DIN 374
£0.00 Net price excl. VAT
10 in stock (UK Warehouse)
Ordered before 17:00 will be delivered the following day
Other warehouses :
52 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 48205171 | A-POT 6GX |
Specifications
THREAD TYPE
MF
THREAD DIAMETER (TD)
10
THREAD PITCH/THREAD PER INCH (TP_TPI)
1.00
CONNECTION DIAMETER (DCON)
7.00
DIN
374
DRIVE SIZE (DRVS)
5.5000
HOLE TYPE APPLICATION
Through Hole
FUNCTIONAL LENGTH (LF)
90.00
FLUTE COUNT (NOF)
3.00
OVERSIZE
0.0260
PREMACHINED HOLE DIAMETER (PHD)
9
TAP TYPE
Cutting tap
THREAD CHAMFER LENGTH (THCHL)
4.00
THREAD CHAMFER TYPE FORM (THCHT)
B
THREAD LENGTH (THLGTH)
20.00
THREAD TOLERANCE
ISO3-6GX
PHD_MAX
9.1790
PHD_MIN
8.9430
THREAD DIAMETER (TD_MM)
0.3937
THREAD DIAMETER (TD_MM)
10.00
THREAD PITCH (TP)
1.00
Material
Steel
Stainless steel
Aluminum alloys
Titanium alloys
Hardened steel
Download format drawings
