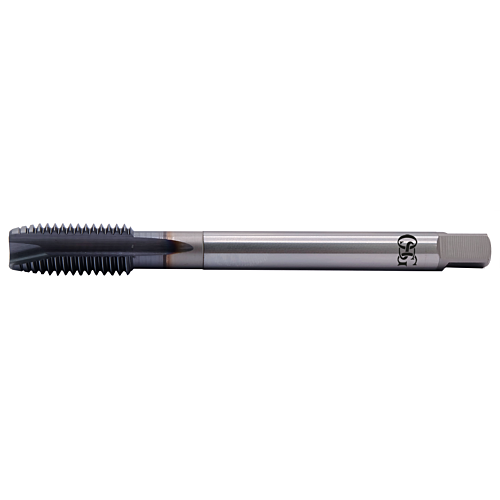

OSG 1/4 x26 BSF A-POT DIN 2184-1
£0.00 Net price excl. VAT
1 in stock (UK Warehouse)
Ordered before 17:00 will be delivered the following day
Other warehouses :
25 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 48205731 | A-POT |
Specifications
THREAD TYPE
BSF
THREAD DIAMETER (TD)
1/4
THREAD PITCH/THREAD PER INCH (TP_TPI)
26.00
CONNECTION DIAMETER (DCON)
7.00
DIN
2184-1
DRIVE SIZE (DRVS)
5.5000
HOLE TYPE APPLICATION
Through Hole
FUNCTIONAL LENGTH (LF)
80.00
USABLE LENGTH (LU)
30
FLUTE COUNT (NOF)
3.00
PREMACHINED HOLE DIAMETER (PHD)
5.3
TAP TYPE
Cutting tap
THREAD CHAMFER LENGTH (THCHL)
4.00
THREAD CHAMFER TYPE FORM (THCHT)
B
THREAD LENGTH (THLGTH)
19.00
THREAD TOLERANCE
MED
THREAD DIAMETER (TD_MM)
0.2500
THREAD DIAMETER (TD_MM)
6.3500
THREAD PITCH (TP)
0.9769
THREAD PER INCH (TPI)
26.00
Material
Steel
Stainless steel
Aluminum alloys
Titanium alloys
Hardened steel
Download format drawings
