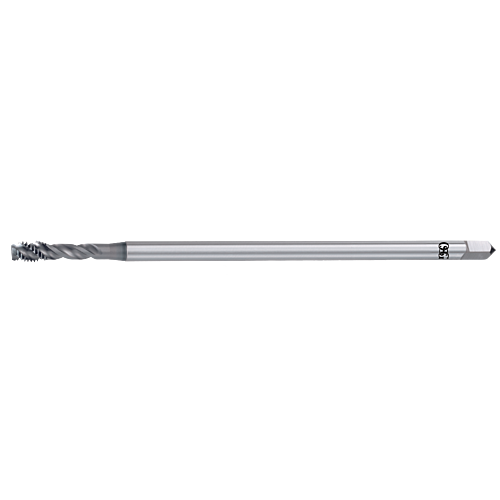

OSG M20x2,5 A-LT-SFT d.16 L200
£0.00 Net price excl. VAT
3 in stock (UK Warehouse)
Ordered before 17:00 will be delivered the following day
Other warehouses :
49 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 48209228 | A-LT-SFT |
Specifications
THREAD TYPE
M
THREAD DIAMETER (TD)
20
THREAD PITCH/THREAD PER INCH (TP_TPI)
2.5000
CONNECTION DIAMETER (DCON)
16.00
DRIVE SIZE (DRVS)
12.00
HOLE TYPE APPLICATION
Blind Hole
FUNCTIONAL LENGTH (LF)
200.00
FLUTE COUNT (NOF)
4.00
PREMACHINED HOLE DIAMETER (PHD)
17.5
TAP TYPE
Cutting tap
THREAD CHAMFER LENGTH (THCHL)
2.5000
THREAD CHAMFER TYPE FORM (THCHT)
C
THREAD LENGTH (THLGTH)
25.00
THREAD TOLERANCE
ISO2-6HX
TYPE
2
PHD_MAX
17.7440
PHD_MIN
17.2940
THREAD DIAMETER (TD_MM)
0.7874
THREAD DIAMETER (TD_MM)
20.00
THREAD PITCH (TP)
2.5000
Material
Steel
Stainless steel
Aluminum alloys
Titanium alloys
Hardened steel
