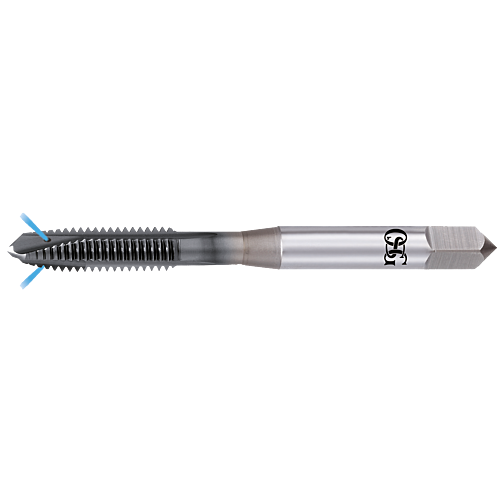

OSG M 24x3 A-OIL-POT DIN 376
£0.00 Net price excl. VAT
2 in stock (UK Warehouse)
Ordered before 17:00 will be delivered the following day
Other warehouses :
33 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 48214247 | A-OIL-POT |
Specifications
THREAD TYPE
M
THREAD DIAMETER (TD)
24
THREAD PITCH/THREAD PER INCH (TP_TPI)
3.00
CONNECTION DIAMETER (DCON)
18.00
DIN
376
DRIVE SIZE (DRVS)
14.5000
HOLE TYPE APPLICATION
Through Hole
FUNCTIONAL LENGTH (LF)
160.00
FLUTE COUNT (NOF)
3.00
PREMACHINED HOLE DIAMETER (PHD)
21
TAP TYPE
Cutting tap
THREAD CHAMFER LENGTH (THCHL)
4.00
THREAD CHAMFER TYPE FORM (THCHT)
B
THREAD LENGTH (THLGTH)
38.00
THREAD TOLERANCE
ISO2-6HX
TYPE
2
PHD_MAX
21.2520
PHD_MIN
20.7520
THREAD DIAMETER (TD_MM)
0.9449
THREAD DIAMETER (TD_MM)
24.00
THREAD PITCH (TP)
3.00
Material
Steel
Stainless steel
Aluminum alloys
Titanium alloys
Hardened steel
