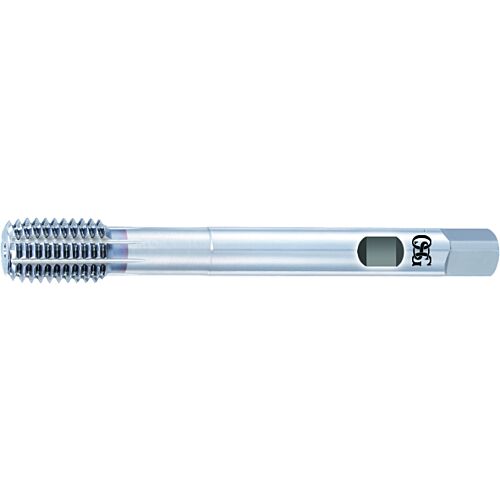

OSG M 14 x2 S-XPF D1835 Weldon DIN 2174
£0.00 Net price excl. VAT
0 in stock (UK Warehouse)
Other warehouses :
21 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 48222191 | S-XPF-HB Weldon |
Key Features
- First choice in quality and performance
- HSSE forming tap for through and blind holes
- Multilayer TiCN coating
- For general steels, stainless steels, aluminium
- With Weldon shank
Specifications
THREAD TYPE
M
THREAD DIAMETER (TD)
14
THREAD PITCH/THREAD PER INCH (TP_TPI)
2.00
CONNECTION DIAMETER (DCON)
14.00
DIN
2174/1835
DRIVE SIZE (DRVS)
11.00
HOLE TYPE APPLICATION
Through and Blind Hole
FUNCTIONAL LENGTH (LF)
110.00
USABLE LENGTH (LU)
49
FLUTE COUNT (NOF)
8.00
PREMACHINED HOLE DIAMETER (PHD)
12,96 ~ 13,08
TAP TYPE
Forming tap
THREAD CHAMFER LENGTH (THCHL)
2.5000
THREAD CHAMFER TYPE FORM (THCHT)
C
THREAD LENGTH (THLGTH)
20.00
THREAD TOLERANCE
ISO2-6HX
TYPE
2
PHD MIN
12.9600
PHD MAX
13.0800
PHD_MAX
13.0800
PHD_MIN
12.9600
THREAD DIAMETER (TD_MM)
0.5512
THREAD DIAMETER (TD_MM)
14.00
THREAD PITCH (TP)
2.00
SHANK TYPE
HB
Material
Steel
Stainless steel
Aluminum alloys
Hardened steel
Download format drawings
