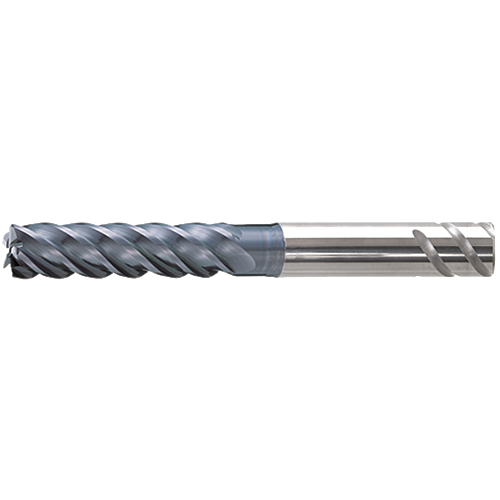

OSG D 20xR 1.5x100 UVXL-TI-5FL SAFE LOCK
£0.00 Net price excl. VAT
0 in stock (UK Warehouse)
Other warehouses :
0 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 48248203 | UVXL-TI-5FL SAFE LOCK |
Specifications
DEPTH OF CUT MAXIMUM (APMX)
80.00
CUTTING DIAMETER (DC)
20.00
CONNECTION DIAMETER (DCON)
20.00
NECK DIAMETER (DN)
19.5000
FUNCTIONAL LENGTH (LF)
160.00
USABLE LENGTH (LU)
100
CORNER RADIUS (RE)
1.5000
PERIPHERAL EFFECTIVE CUTTING EDGE COUNT (ZEFP)
5.00
Material
Titanium alloys
Download format drawings
Cutting conditions
