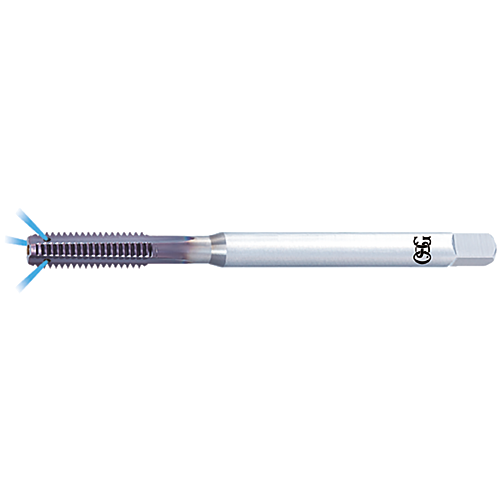

OSG M 6x1 A-CHT OIL Side DIN 371
£0.00 Net price excl. VAT
6 in stock (Europe Warehouse)
Ordered before 17:00 will be delivered the following day
EDP | Family |
---|---|
48265155 | A-CHT OIL Side |
Specifications
THREAD TYPE
M
THREAD DIAMETER (TD)
6
THREAD PITCH/THREAD PER INCH (TP_TPI)
1.00
CONNECTION DIAMETER (DCON)
6.00
DIN
371
DRIVE SIZE (DRVS)
4.9000
HOLE TYPE APPLICATION
Through Hole
FUNCTIONAL LENGTH (LF)
80.00
USABLE LENGTH (LU)
30
FLUTE COUNT (NOF)
3.00
TAP TYPE
Cutting tap
THREAD CHAMFER LENGTH (THCHL)
2.5000
THREAD CHAMFER TYPE FORM (THCHT)
C
THREAD LENGTH (THLGTH)
12.00
THREAD TOLERANCE
ISO2-6HX
TYPE
1
