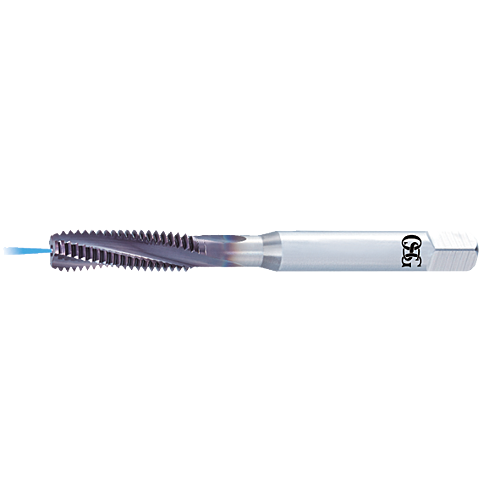

OSG MF 8x1 A-CSF OIL DIN 374

Log in / Register
27 in stock (Europe Warehouse)
Ordered before 17:00 will be delivered the following day
EDP Family
48267162 A-CSF OIL
Specifications
Connection diameter (DCON)
6.00
DIN
374
Drive size (DRVS)
4.9000
Hole Type Application
Blind Hole
Functional length (LF)
90.00
Flute count (NOF)
3.00
Tap Type
Cutting tap
Thread diameter (TD)
8
Thread chamfer length (THCHL)
2.5000
Thread chamfer type form (THCHT)
C
Thread length (THLGTH)
15.00
Thread Tolerance
ISO2-6HX
Thread type
MF
Thread pitch/thread per inch (TP_TPI)
1.00
Material
K
Cast iron
N
Aluminum alloys
Download format drawings
