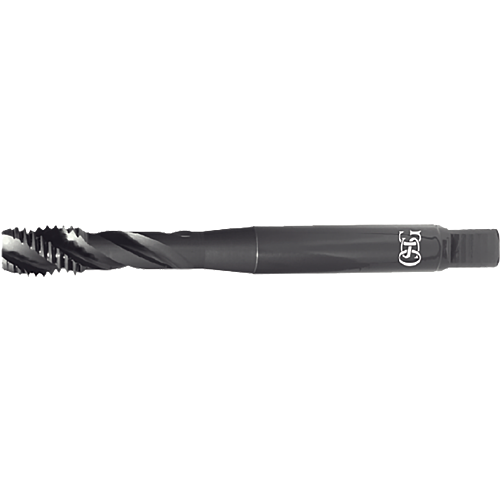

OSG MF 8 x1 S-SFT-6G DIN 374
£0.00 Net price excl. VAT
125 in stock (Europe Warehouse)
Ordered before 17:00 will be delivered the following day
| EDP | Family |
|---|---|
| 48269162 | S-SFT 6G |
Specifications
THREAD TYPE
MF
THREAD DIAMETER (TD)
8
THREAD PITCH/THREAD PER INCH (TP_TPI)
1.00
CONNECTION DIAMETER (DCON)
6.00
DIN
374
DRIVE SIZE (DRVS)
4.9000
HOLE TYPE APPLICATION
Blind Hole
FUNCTIONAL LENGTH (LF)
90.00
FLUTE COUNT (NOF)
3.00
OVERSIZE
0.0260
TAP TYPE
Cutting tap
THREAD CHAMFER LENGTH (THCHL)
2.5000
THREAD CHAMFER TYPE FORM (THCHT)
C
THREAD LENGTH (THLGTH)
10.00
THREAD TOLERANCE
ISO2-6G
Material
Steel
Stainless steel
Cast iron
Download format drawings
