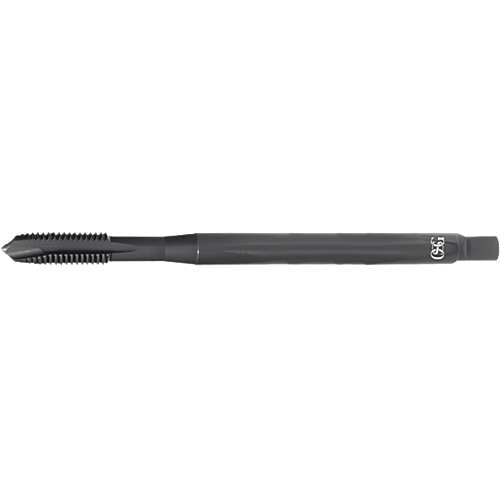

OSG M2,5x0,45 S-LT-POT d.2,8 L100
£0.00 Net price excl. VAT
0 in stock (UK Warehouse)
Other warehouses :
53 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 48278133 | S-LT-POT |
Specifications
THREAD TYPE
M
THREAD DIAMETER (TD)
2.5
THREAD PITCH/THREAD PER INCH (TP_TPI)
0.4500
CONNECTION DIAMETER (DCON)
2.8000
DRIVE SIZE (DRVS)
2.1000
HOLE TYPE APPLICATION
Through Hole
FUNCTIONAL LENGTH (LF)
100.00
FLUTE COUNT (NOF)
2.00
PREMACHINED HOLE DIAMETER (PHD)
2.05
TAP TYPE
Cutting tap
THREAD CHAMFER LENGTH (THCHL)
4.00
THREAD CHAMFER TYPE FORM (THCHT)
B
THREAD LENGTH (THLGTH)
9.00
THREAD TOLERANCE
ISO2-6H
TYPE
1
PHD_MAX
2.1380
PHD_MIN
2.0130
THREAD DIAMETER (TD_MM)
0.0984
THREAD DIAMETER (TD_MM)
2.5000
THREAD PITCH (TP)
0.4500
Material
Steel
Stainless steel
Cast iron
Download format drawings
