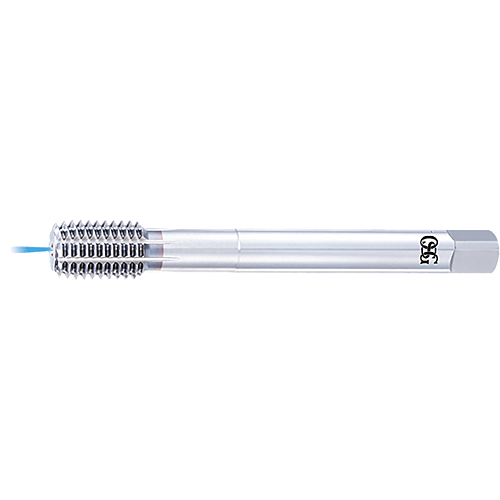

OSG MF 12x1,25 S-OIL-XPF FORM E DIN 2174
£0.00 Net price excl. VAT
0 in stock (UK Warehouse)
Other warehouses :
59 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 48294181 | S-OIL-XPF FORM E |
Specifications
THREAD TYPE
MF
THREAD DIAMETER (TD)
12
THREAD PITCH/THREAD PER INCH (TP_TPI)
1.2500
CONNECTION DIAMETER (DCON)
9.00
DIN
2174
DRIVE SIZE (DRVS)
7.00
HOLE TYPE APPLICATION
Blind Hole
FUNCTIONAL LENGTH (LF)
100.00
FLUTE COUNT (NOF)
8.00
PREMACHINED HOLE DIAMETER (PHD)
11,39 ~ 11,46
TAP TYPE
Forming tap
THREAD CHAMFER LENGTH (THCHL)
1.5000
THREAD CHAMFER TYPE FORM (THCHT)
E
THREAD LENGTH (THLGTH)
15.00
THREAD TOLERANCE
ISO2-6HX
PHD MIN
11.3900
PHD MAX
11.4600
PHD_MAX
11.4600
PHD_MIN
11.3900
THREAD DIAMETER (TD_MM)
0.4724
THREAD DIAMETER (TD_MM)
12.00
THREAD PITCH (TP)
1.2500
Material
Steel
Stainless steel
Aluminum alloys
Hardened steel
