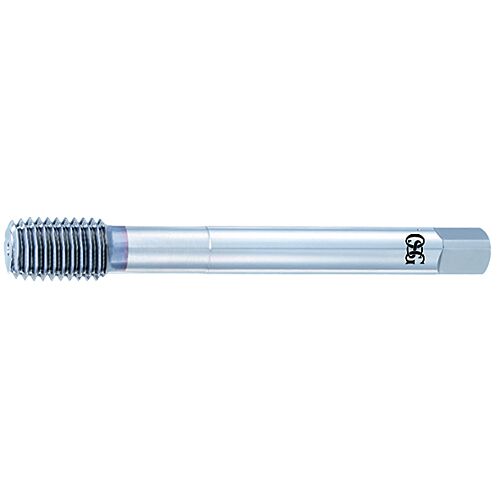

OSG MF 12x1 S-XPF-GL-6GX DIN 2174
£0.00 Net price excl. VAT
0 in stock (UK Warehouse)
Other warehouses :
84 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 48297182 | S-XPF-GL 6GX |
Specifications
THREAD TYPE
MF
THREAD DIAMETER (TD)
12
THREAD PITCH/THREAD PER INCH (TP_TPI)
1.00
CONNECTION DIAMETER (DCON)
9.00
DIN
2174
DRIVE SIZE (DRVS)
7.00
HOLE TYPE APPLICATION
Through and Blind Hole
FUNCTIONAL LENGTH (LF)
100.00
FLUTE COUNT (NOF)
0.00
OVERSIZE
0.0260
PREMACHINED HOLE DIAMETER (PHD)
11,55 ~ 11,63
TAP TYPE
Forming tap
THREAD CHAMFER LENGTH (THCHL)
2.5000
THREAD CHAMFER TYPE FORM (THCHT)
C
THREAD LENGTH (THLGTH)
12.00
THREAD TOLERANCE
ISO3-6GX
PHD MIN
11.5500
PHD MAX
11.6300
PHD_MAX
11.6300
PHD_MIN
11.5500
THREAD DIAMETER (TD_MM)
0.4724
THREAD DIAMETER (TD_MM)
12.00
THREAD PITCH (TP)
1.00
Material
Steel
Stainless steel
Aluminum alloys
