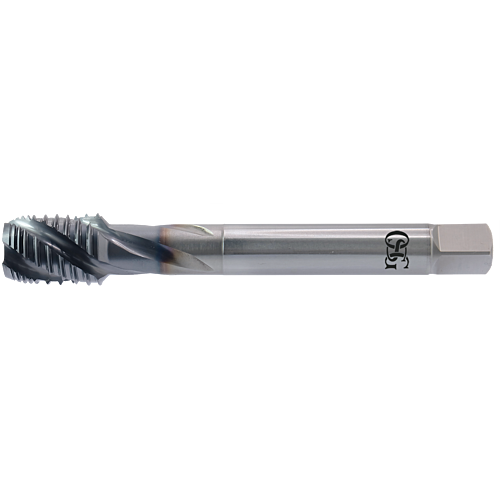

OSG Rc 3/8 x19 A-SFT DIN 5156
£0.00 Net price excl. VAT
0 in stock (UK Warehouse)
Other warehouses :
26 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 48302404 | A-SFT |
Specifications
THREAD TYPE
RC
THREAD DIAMETER (TD)
3/8
THREAD PITCH/THREAD PER INCH (TP_TPI)
19.00
CONNECTION DIAMETER (DCON)
12.00
DIN
5156
DRIVE SIZE (DRVS)
9.00
HOLE TYPE APPLICATION
Blind Hole
FUNCTIONAL LENGTH (LF)
100.00
USABLE LENGTH (LU)
21
FLUTE COUNT (NOF)
4.00
PREMACHINED HOLE DIAMETER (PHD)
14.5
TAP TYPE
Cutting tap
THREAD CHAMFER LENGTH (THCHL)
2.5000
THREAD CHAMFER TYPE FORM (THCHT)
C
THREAD LENGTH (THLGTH)
15.4000
THREAD DIAMETER (TD_MM)
0.6560
THREAD DIAMETER (TD_MM)
16.6620
THREAD PITCH (TP)
1.3368
THREAD PER INCH (TPI)
19.00
Material
Steel
Stainless steel
Aluminum alloys
Titanium alloys
Hardened steel
