OSG MF18x1,5 M-SFT-DUPLEX DIN374 TIN

Add to Wish List
Be the first to review this product
£0.00 Net price excl. VAT
Sign In / Register

This product is available in the warehouse of our European headquarters. The delivery time is approx. 2 working days.

0 in stock (UK Warehouse)
Other warehouses :
21 in stock (Europe Warehouse)
EDP Family
48336216 M-SFT-DUPLEX

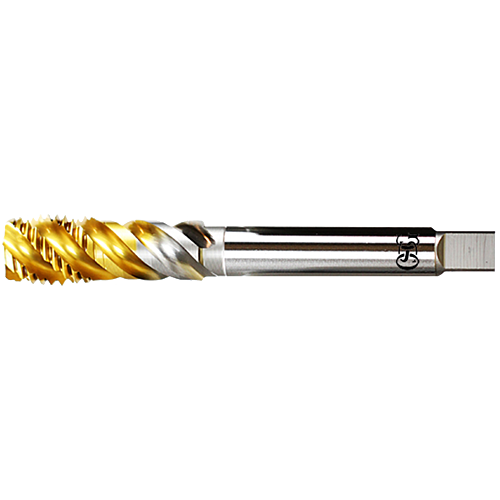

main product photo
Specifications
THREAD TYPE
MF
THREAD DIAMETER (TD)
18
THREAD PITCH/THREAD PER INCH (TP_TPI)
1.5000
CONNECTION DIAMETER (DCON)
14.00
DIN
374
DRIVE SIZE (DRVS)
11.00
HOLE TYPE APPLICATION
Blind Hole
FUNCTIONAL LENGTH (LF)
110.00
FLUTE COUNT (NOF)
4.00
PREMACHINED HOLE DIAMETER (PHD)
16.5
TAP TYPE
Cutting tap
THREAD CHAMFER LENGTH (THCHL)
2.5000
THREAD CHAMFER TYPE FORM (THCHT)
C
THREAD LENGTH (THLGTH)
20.00
THREAD TOLERANCE
ISO2-6HX
TYPE
2
PHD_MAX
16.6760
PHD_MIN
16.3760
THREAD DIAMETER (TD_MM)
0.7087
THREAD DIAMETER (TD_MM)
18.00
THREAD PITCH (TP)
1.5000
Material
P
Steel
M
Stainless steel
S
Titanium alloys
Download format drawings
