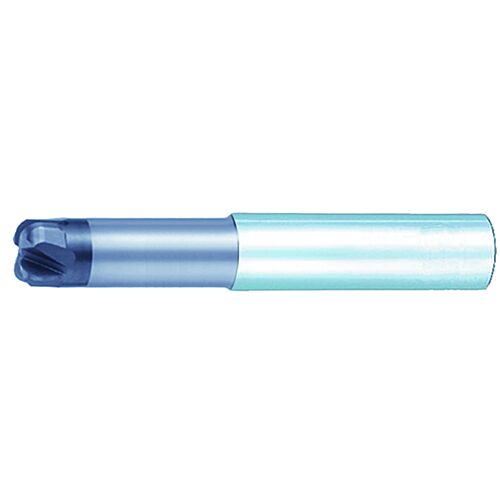

HY-PRO 6xR1.5 HYP-HS-CRE
£0.00 Net price excl. VAT
1 in stock (UK Warehouse)
Ordered before 17:00 will be delivered the following day
Other warehouses :
48 in stock (Europe Warehouse)
EDP | Family |
---|---|
48340060 | HYP-HS-CRE |
Key Features
- Carbide end mill with TiAlN coating
- For hard materials and cast iron
- 4 flutes, super radius
Specifications
DEPTH OF CUT MAXIMUM (APMX)
2.5000
CUTTING DIAMETER (DC)
6.00
CONNECTION DIAMETER (DCON)
6.00
NECK DIAMETER (DN)
5.00
FUNCTIONAL LENGTH (LF)
57.00
USABLE LENGTH (LU)
24
CORNER RADIUS (RE)
1.5000
PERIPHERAL EFFECTIVE CUTTING EDGE COUNT (ZEFP)
4.00
Material
Steel
Cast iron
Hardened steel
