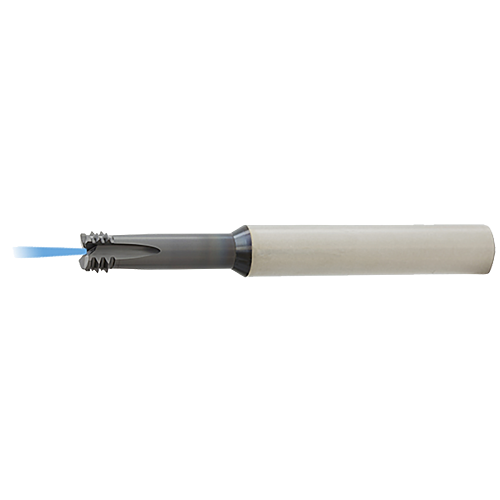

WHO-EM-PNC D11,8 G3/8 x 19 LH
£0.00 Net price excl. VAT
0 in stock (UK Warehouse)
Other warehouses :
6 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 48348105 | WHO-EM-PNC |
Specifications
THREAD TYPE
G
THREAD DIAMETER (TD)
3/8
CUTTING DIAMETER (DC)
11.8000
THREAD PITCH/THREAD PER INCH (TP_TPI)
19.00
CONNECTION DIAMETER (DCON)
12.00
NECK DIAMETER (DN)
9.8000
HOLE TYPE APPLICATION
Through and Blind Hole
FUNCTIONAL LENGTH (LF)
83.00
HEAD LENGTH (LH)
38.5000
USABLE LENGTH (LU)
37
MIN CUTTING BORE DIAMETER
G3/8
FLUTE COUNT (NOF)
4.00
TAP TYPE
Thread milling cutter
RPRG
5.9000
THREAD PITCH (TP)
1.3368
THREAD PER INCH (TPI)
19.00
Material
Steel
Stainless steel
Cast iron
Aluminum alloys
Titanium alloys
Hardened steel
Download format drawings
Cutting conditions
