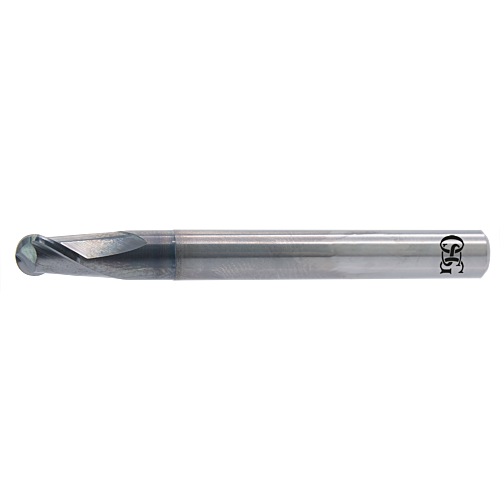

HY-PRO R5x11x10 HYP-SB-EBD
£0.00 Net price excl. VAT
1 in stock (UK Warehouse)
Ordered before 17:00 will be delivered the following day
Other warehouses :
18 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 48350100 | HYP-SB-EBD |
Key Features
- Carbide end mill with TiAlN coating
- For general applications
- 2 flutes, ball nose
Specifications
DEPTH OF CUT MAXIMUM (APMX)
11.00
CUTTING DIAMETER (DC)
10.00
CONNECTION DIAMETER (DCON)
10.00
FUNCTIONAL LENGTH (LF)
72.00
USABLE LENGTH (LU)
25
CORNER RADIUS (RE)
5.00
PERIPHERAL EFFECTIVE CUTTING EDGE COUNT (ZEFP)
2.00
Material
Steel
Stainless steel
Cast iron
Aluminum alloys
Hardened steel
Cutting conditions
