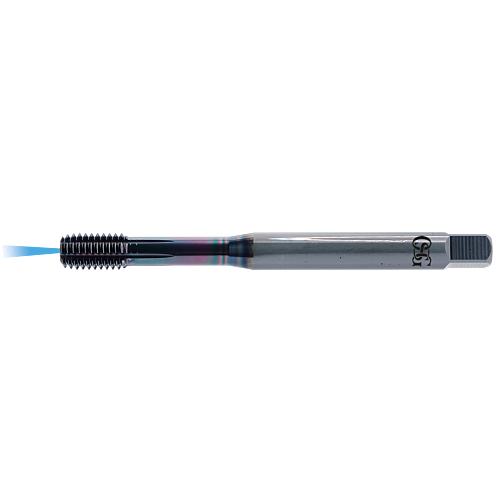

OSG M 16X2 P-OIL-CXPF DIN2174
£0.00 Net price excl. VAT
7 in stock (Europe Warehouse)
Ordered before 17:00 will be delivered the following day
| EDP | Family |
|---|---|
| 48362202 | P-OIL-CXPF |
Specifications
THREAD TYPE
M
THREAD DIAMETER (TD)
16
THREAD PITCH/THREAD PER INCH (TP_TPI)
2.00
CONNECTION DIAMETER (DCON)
12.00
DIN
2174
DRIVE SIZE (DRVS)
9.00
HOLE TYPE APPLICATION
Through and Blind Hole
FUNCTIONAL LENGTH (LF)
110.00
FLUTE COUNT (NOF)
9.00
PREMACHINED HOLE DIAMETER (PHD)
14,96 ~ 15,08
TAP TYPE
Forming tap
THREAD CHAMFER LENGTH (THCHL)
2.5000
THREAD CHAMFER TYPE FORM (THCHT)
C
THREAD LENGTH (THLGTH)
20.00
THREAD TOLERANCE
ISO2-6HX
TYPE
2
Material
Steel
Aluminum alloys
Hardened steel
Download format drawings
