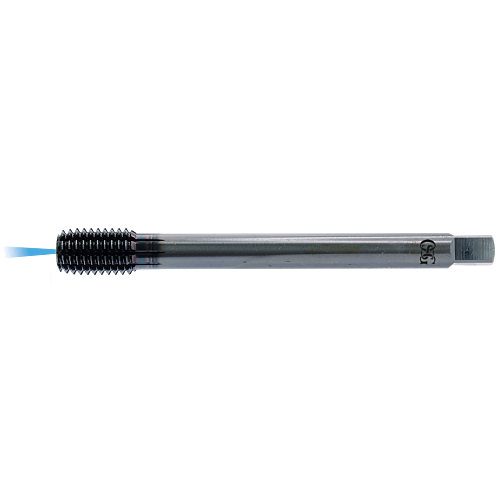

OSG MF 16X1.5 P-OIL-CXPF DIN2174
£0.00 Net price excl. VAT
0 in stock (UK Warehouse)
Other warehouses :
7 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 48362203 | P-OIL-CXPF |
Specifications
THREAD TYPE
MF
THREAD DIAMETER (TD)
16
THREAD PITCH/THREAD PER INCH (TP_TPI)
1.5000
CONNECTION DIAMETER (DCON)
12.00
DIN
2174
DRIVE SIZE (DRVS)
9.00
HOLE TYPE APPLICATION
Through and Blind Hole
FUNCTIONAL LENGTH (LF)
100.00
FLUTE COUNT (NOF)
9.00
PREMACHINED HOLE DIAMETER (PHD)
15,25 ~ 15,34
TAP TYPE
Forming tap
THREAD CHAMFER LENGTH (THCHL)
2.5000
THREAD CHAMFER TYPE FORM (THCHT)
C
THREAD LENGTH (THLGTH)
15.00
THREAD TOLERANCE
ISO2-6HX
PHD_MAX
15.3400
PHD_MIN
15.2500
THREAD DIAMETER (TD_MM)
0.6299
THREAD DIAMETER (TD_MM)
16.00
THREAD PITCH (TP)
1.5000
Material
Steel
Aluminum alloys
Hardened steel
Download format drawings
