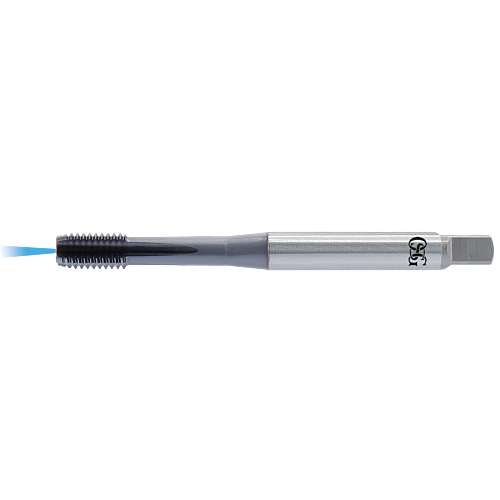

OSG UNF 9/16x18 VPO-DC-MT (Form E) DIN2184-1 CENTER
£0.00 Net price excl. VAT
0 in stock (UK Warehouse)
Other warehouses :
4 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 48379496 | VPO-DC-MT (Form E) |
Specifications
THREAD TYPE
UNF
THREAD DIAMETER (TD)
9/16
THREAD PITCH/THREAD PER INCH (TP_TPI)
18.00
CONNECTION DIAMETER (DCON)
11.00
DIN
2184-1
DRIVE SIZE (DRVS)
9.00
HOLE TYPE APPLICATION
Blind Hole
FUNCTIONAL LENGTH (LF)
100.00
HEAD LENGTH (LH)
40.00
FLUTE COUNT (NOF)
4.00
PREMACHINED HOLE DIAMETER (PHD)
13
TAP TYPE
Cutting tap
THREAD CHAMFER LENGTH (THCHL)
22.00
THREAD CHAMFER TYPE FORM (THCHT)
E
THREAD LENGTH (THLGTH)
22.00
THREAD TOLERANCE
ANSI-2BX
TYPE
2
PHD_MAX
13.0810
PHD_MIN
12.7510
THREAD DIAMETER (TD_MM)
0.5625
THREAD DIAMETER (TD_MM)
14.2870
THREAD PITCH (TP)
1.4111
THREAD PER INCH (TPI)
18.00
Material
Steel
Cast iron
Aluminum alloys
Hardened steel
